Position lamps / clearance lights

192 series of lamps

W47WW

IP 66/68 | 12V-24V|

Type of approval : ECE

Rear assembly end-outline lamp

535

variants: 535 ADR

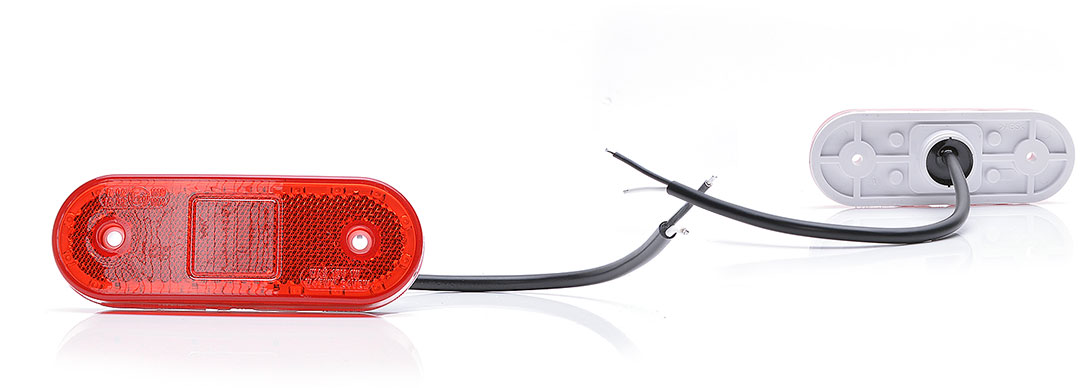

Position lamps / clearance lights - W47WW

In some cases, product photos on the website may differ slightly from the originals.

* The drawings on the website showing the location and dimensions of mounting holes are for guidance only, and the information contained therein may be inadequate, especially when the lamp is ordered with a cable other than standard.

catalogue number	cable / wires	light source	mounting side	operating voltage	position / front clearance	position / side clearance	position / rear clearance	reflective device	pieces in the box
535	22cm YLY-S 2x0,75mm²	LED	Universal	12V-24V					50
535 ADR	22cm FLRYY 2x0,75mm²	LED	Universal	12V-24V					50

This product is also available in ADR-compliant version. This means that it meets the requirements of the European Agreement concerning the International Carriage of Dangerous Goods by Road: materials (substance, chemical, compound, waste, etc.) or objects (a product containing hazardous materials), the carriage of which is regulated by the ADR agreement. See all our products which comply with ADR requirements.

This product is also available with an FLRYY cable and a quick connector for connection to a 2×1.5 mm² flat cable. In the part number, the “xx” section indicates the cable length, which can be selected from the following options: 0.5 m, 1.0 m, 1.5 m, 2.0 m, 2.5 m, 3.5 m, 5.0 m and 7.1 m.

Note: The cable length is measured from the lamp's electronic module.
