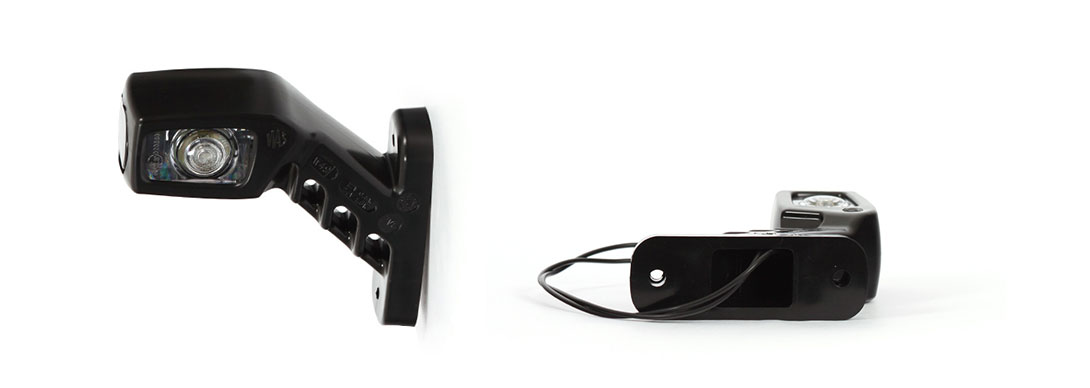

Position lamps / clearance lights

192 series of lamps

W49

IP 66/68 | 12V-24V|

Type of approval : ECE

Front-rear end-outline lamp

242L

variants: 242L ADR

In some cases, product photos on the website may differ slightly from the originals.

* The drawings on the website showing the location and dimensions of mounting holes are for guidance only, and the information contained therein may be inadequate, especially when the lamp is ordered with a cable other than standard.

catalogue number	cable / wires	light source	mounting side	operating voltage	position / front clearance	position / side clearance	position / rear clearance	pieces in the box
242L	28cm LgY-S 0,75mm²	LED	Left	12V-24V				40
242L ADR	28cm FLRYY 0,75mm²	LED	Left	12V-24V				40

This product is also available in ADR-compliant version. This means that it meets the requirements of the European Agreement concerning the International Carriage of Dangerous Goods by Road: materials (substance, chemical, compound, waste, etc.) or objects (a product containing hazardous materials), the carriage of which is regulated by the ADR agreement. See all our products which comply with ADR requirements.

This product is also available with FLRYY11Y 2x1.0mm² cable and Click-In connector suitable for 2x1.5mm² flat cable. The 'xx' in the code indicates the length of the cable in the lamp which can be selected from the following options: 0.5m, 1.0m, 1.5m, 2.0m, 2.5m, 3.5m, 5.0 and 7.1m. Note: the length of the cable is measured from the electronics inside of the lamp.
